Cast Resin Transformer Foil Winding Machine Featuring PLC Control
Description of transformer foil winding machine BRJ800
Automatic transformer foil winding machine BRJ800 is a special foil winder, which can be used to wind conductor aluminium foil or conductor copper foil to make dry type transformer coils. This model of the transformer foil winding machine is equipped with one foil decoiler and two insulation paper decoilers, which makes the foil winding machine can wind one layer of foil and one or two layers of insulation paper at the same time. Moreover, the transformer foil winding machine is provided with rolling cutter to cut conductor foil after finishing winding. With a touch screen and HMI, the transformer foil winding machine can be operated easily.
Quick details of transformer foil winding machine BRJ800
1) One foil decoiler
2) Two insulation paper decoilers
4) End-fill strip feeders
5) Cleaning system
6) Deburring system
7) Edge alignment system
8) Automatic welding unit
Technical parameters of transformer foil winding machine BRJ800
Typical standard specifications of transformer foil winding machine BRJ800 are shown below, however the machine can also be manufactured as requested.
| Foil Width: | 200 ~ 800mm |
| Finished Coil Shape: | oval, circle and rectangle |
| Supply Material OD.: | 1,000mm |
| Supply Material ID.: | 500mm |
| Foil Decoiler Number: | 1 pc |
| Foil Decoiler Length: | 850mm |
| Foil Decoiler Expansion Range: | Ø420 ~ 520mm |
| Winding Shaft Size: | 80×80×1150 mm |
| Cutter: | Electric disc shear |
| Insulation Decoiler Number: | 2 pcs |
| Max. Insulation Material OD.: | Ø400mm |
| Insulation Material ID.: | Ø75mm |
| Max. Insulation Material Width: | 850mm |
| Edge Alignment System: | Photoelectric sensing |
| Control System: | PLC |
| User Interface: | 10inch (254mm) touch screen |
| Counting Turns Range: | 0 ~ 9999.9 |
| Winding Power: | 11kw |
| Winding Speed: | 0 ~ 20rpm |

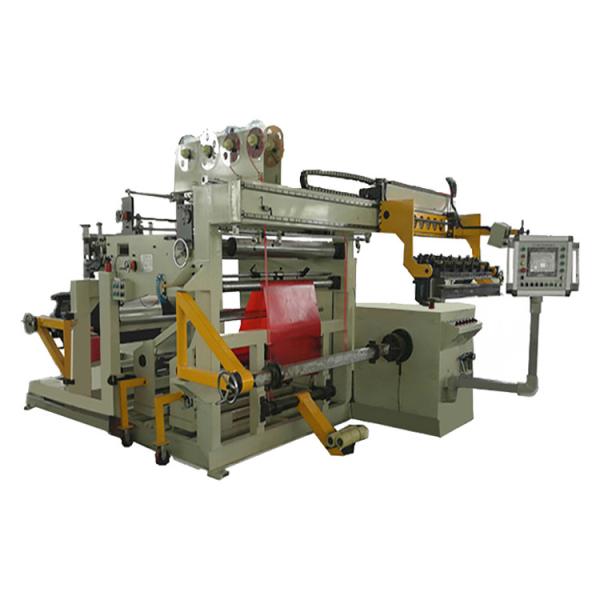

Fig 1: Transformer foil winding machine BRJ800's front view
Fig 2: Transformer foil winding machine BRJ800's back view
|
|
Cast Resin Transformer Foil Winding Machine Featuring PLC Control Images
|
